MAG 424

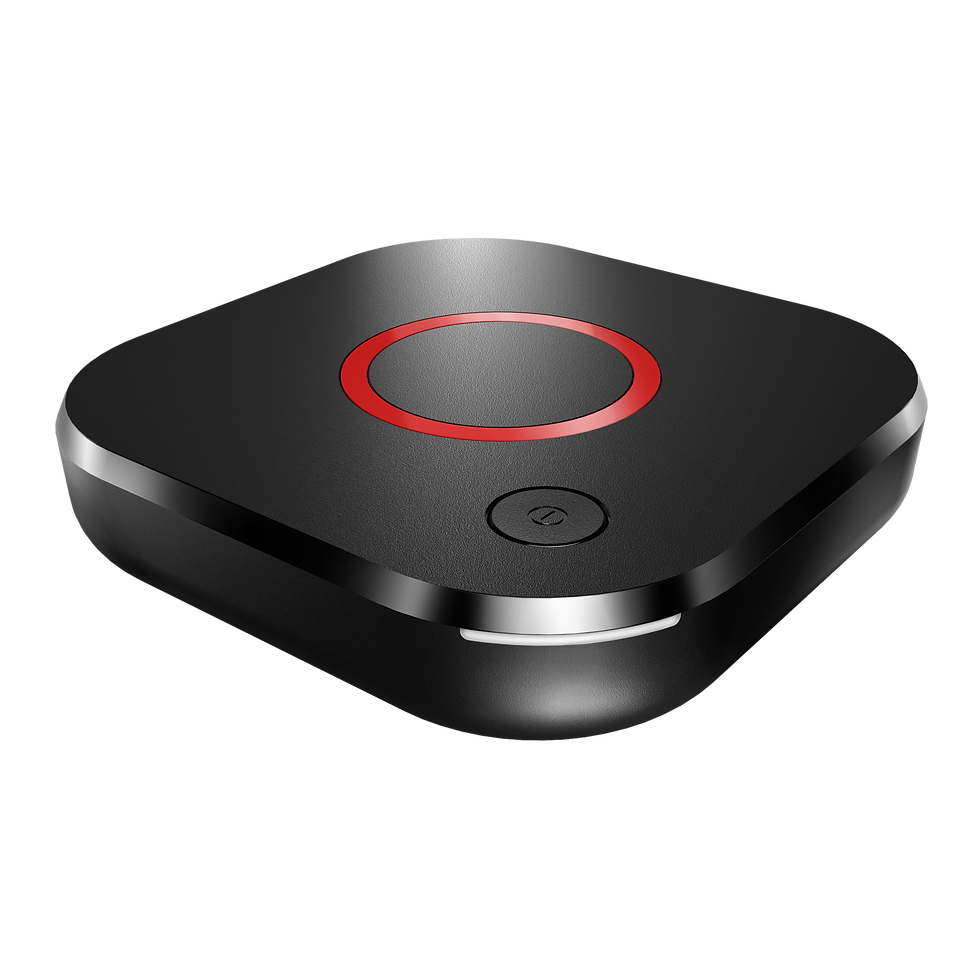

IPTV SET-TOP BOX MAG424
MAG424/424w3 is a cost-effective UHD IPTV/OTT solution intended for medium to large sized operators and telecommunication service providers. The set-top box performed in small form-factor. It has 1 GB operative and 8 GB flash memory, which is good enough to playback and store the high-quality video.
MAG424/424w3 plays the HEVC-compressed files. It means the network load will be lower, even when delivering 4K content. The device runs on Linux OS and fully meets the most stringent requirements of the IPTV/OTT market.Equipped with 2 USB, Bluetooth 4.1 and built-in Wi-Fi adapter (MAG424w3).
Specifications
Dimensions
Width/depth/height, (mm) 115x115x28 Weight, g 180
Hardware
Chipset Hi3798MV200 Processor ARM Cortex-A53 Quad Core CPU 1200 MHz Performance 15 000 DMIPS RAM 1 GB Flash memory 8 GB eMMC
Software
Operating system Linux 4.4.35 Middleware supported Ministra TV platform version 5.4.0 or higher
Interfaces

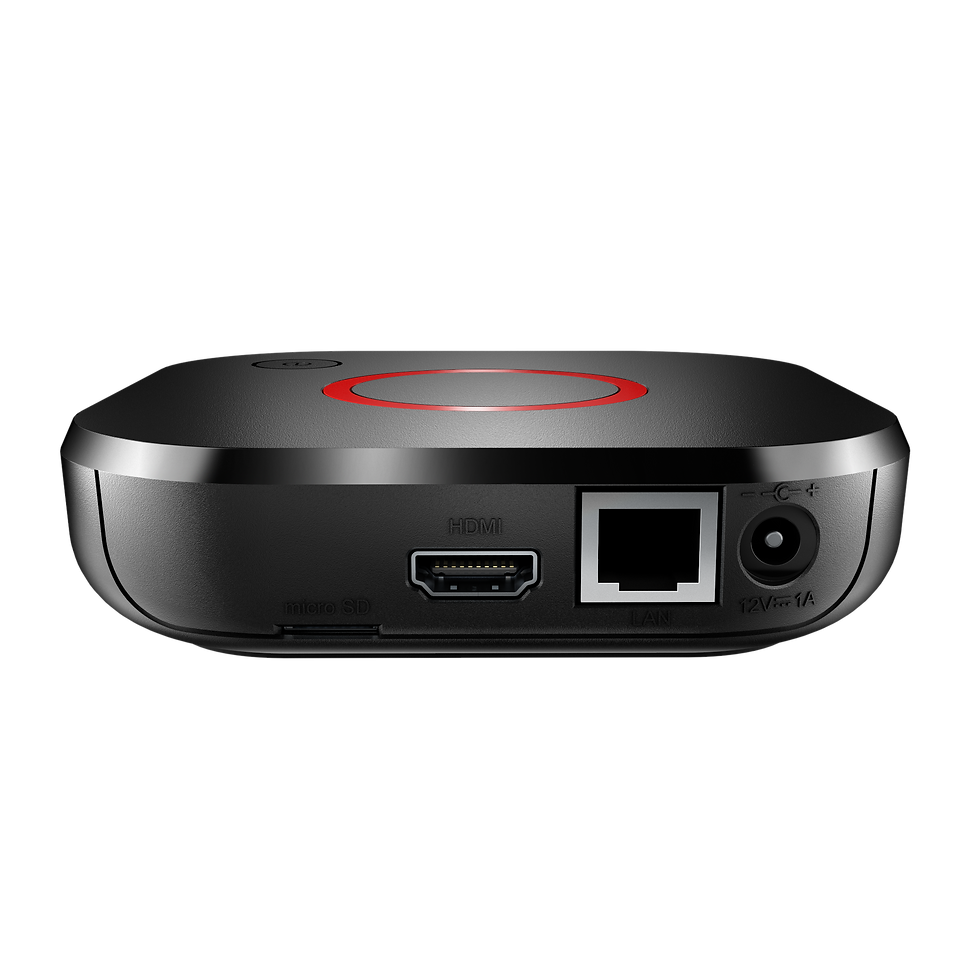

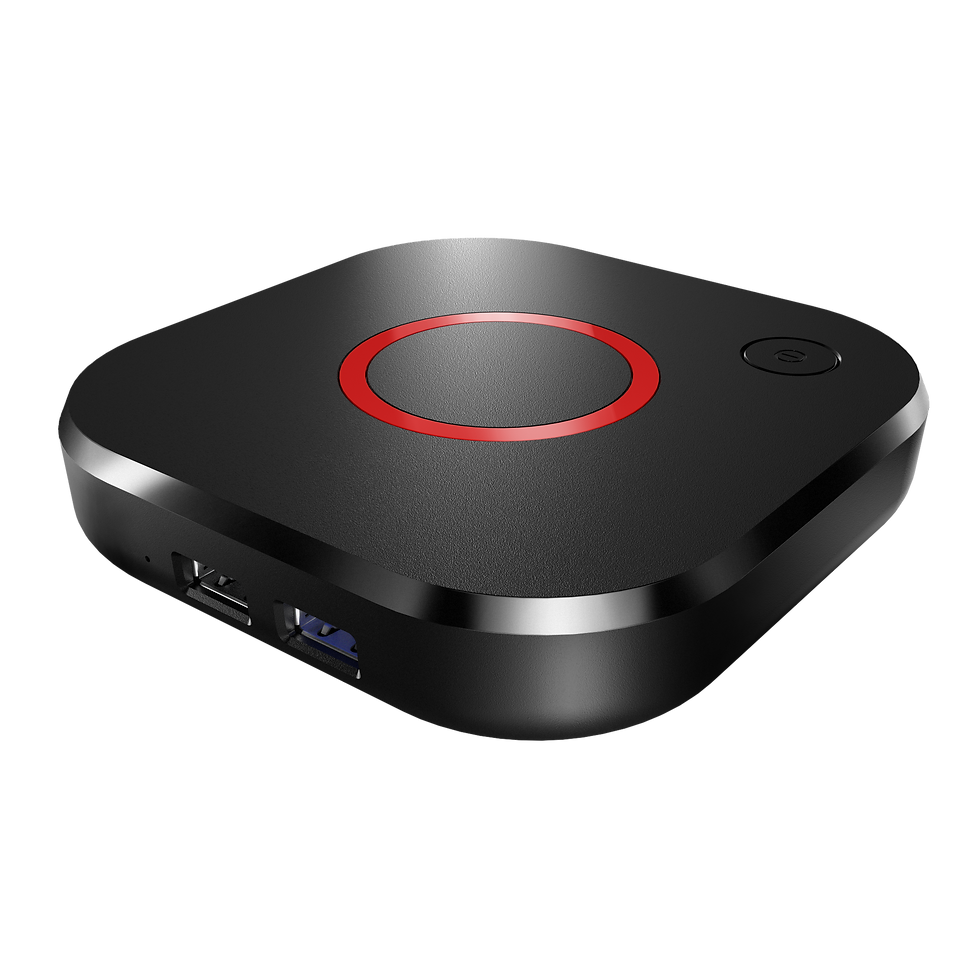

HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1, Bluetooth 3.0, 4.1, MicroSD
Sources of media content
PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices
Audio & video
Audio сodecs MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus Audio formats MP3, MPA, M4A, OGG, WAV, AAC Video modes PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p Video сodecs H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP Image formats JPEG, PNG, BMP, RAW Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed caption Playlist formats M3U, M3U8, PLS, CUE
Standard set
MAG424 Set-Top Box, User Manual, HDMI cable, Power adapter 12V 1A, Remote control, 2 AAA batteries, Packaging
